CMP series

  • The post-CMP cleaning solutions that can efficiently clean metallic impurities, particles, and organic substances remaining on wafers after CMP without damaging a variety of metallic materials and interlayer dielectrics.

Product Line

Products Applicable process pH Features
CMP-M02 Cu-CMP
W-CMP
Acidic Standard acid cleaning solution
・High metallic impurity removal performance
CMP-M200 series W-CMP Acidic ・High organic residue removal performance
・Also removes fine particles
 CMP-B200 series Cu-CMP
Co-CMP
Alkaline ・High organic residue removal performance
・Applicable to a variety of barrier metals (Ta, Ti, Co, and Ru)
 CMP-B300 series STI-CMP, ILD-CMP Acidic ・High ceria slurry removal performance
・Inhibits damage to dielectrics and W
CMP-ML series Co-CMP
Mo-CMP
Mildly acidic –
Mildly alkaline

High silica slurry removal performance

CMP-M302

SiC-CMP

Acidic

・High Mn-based slurry removal performance



Features

CMP-M02
  • CMP-M02 can be used for a post-CMP cleaning solution for Cu-CMP and W-CMP.
  • The cleaning solution with high capability to remove metallic impurities.
  • It causes almost no damage to wiring materials, etc.

CMP-M02 初期状態.jpg   CMP-M02 ②30倍希釈.jpg   CMP-M02 ③50倍希釈.jpg
Before cleaning



30 times diluted



50 times diluted

 Cleaning evaluation of forcibly contaminated wafers with CMP slurry



CMP-M200 series
  • CMP-M200 series can be used for a post-CMP cleaning solution for W-CMP.
  • The cleaning solutions with high capability to remove fine particles and organic residues on W, TEOS, and SiN.
  • This series of products cause almost no damage to wiring materials, etc.


Defect map after post-CMP cleaning on SiN wafer



CMP-B200 series
  • CMP-B200 series can be used for a post-CMP cleaning solution for Cu-CMP.
  • The cleaning solutions with high capability to remove particles and organic residues on Cu.
  • This series of products cause almost no damage to wiring materials, etc.


Defect map after post-CMP cleaning on Cu blanket wafer


CMP-B300 series
  • CMP-B300 series can be used for a post-CMP cleaning solution for ceria slurries.
  • The cleaning solutions with very high ceria abrasive removal capability after STI-CMP and ILD-CMP.
  • The damage to dielectrics can be inhibited compared to DHF.

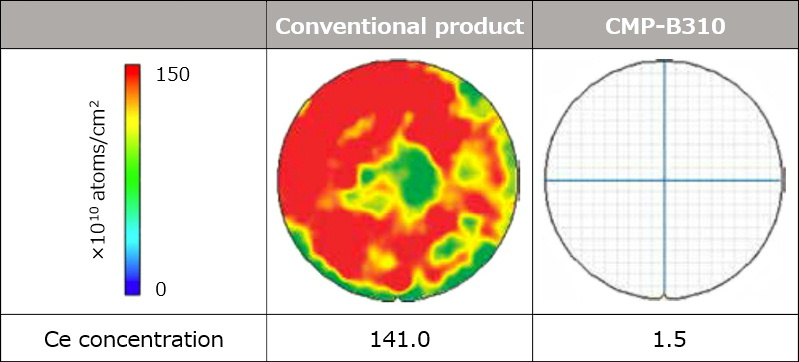

Ce concentration after post-CMP cleaning



CMP-M302
  • CMP-M302 can be used for a post-CMP cleaning solution for Mn-based slurries.
  • The cleaning solution with high capability to remove Mn-based residue.


Surface Mn concentration before and after cleaning
