Reagent & Solvent for Gas Chromatography



Dioxin Analysis

Solvents for Dioxin Analysis

Analysis of dioxins including coplanar PCBs is not easy because target compounds have many isomers and concentrations are extremely low. We offer optimized solvents and sample cleanup agents that do not interfere with the target compound in dioxin analysis.

Solvents for Analysis of Dioxins “Guaranteed by x10,000 Concentrated Solvent”

Blank test of solvent “Guaranteed by x 10,000 Concentrated Solvent” is conducted. Blank test of each solvent “Guaranteed by x 10,000 Concentrated Solvent” by GC/MS(SIM) shows that 4-8 chlorinated dibenzo-p-dioxins (PCDDs), dibenzofurans (PCDFs) are below 10μg/L(10ppb).
→below 1ng/L(1ppt) as product (before concentration)

Product List
Product No. Product name Grade Size
01025-79 Acetone for dioxins analysis(x10,000) 1L
01025-76 Acetone for dioxins analysis(x10,000) 3L
11338-79 Dichloromethane for dioxins analysis(x10,000) 1L
11338-76 Dichloromethane for dioxins analysis(x10,000) 3L
14039-78 Ethanol (99.5) for dioxins analysis(x10,000) 1L
14039-76 Ethanol (99.5) for dioxins analysis(x10,000) 3L
18636-79 Hexane for dioxins analysis(x10,000) 1L
18636-76 Hexane for dioxins analysis(x10,000) 3L
25184-79 Methanol for dioxins analysis(x10,000) 1L
25184-76 Methanol for dioxins analysis(x10,000) 3L
40500-79 Toluene for dioxins analysis(x10,000) 1L
40500-76 Toluene for dioxins analysis(x10,000) 3L
Example of Test Results for Solvents for Dioxin Analysis (GC/MS Chromatogram

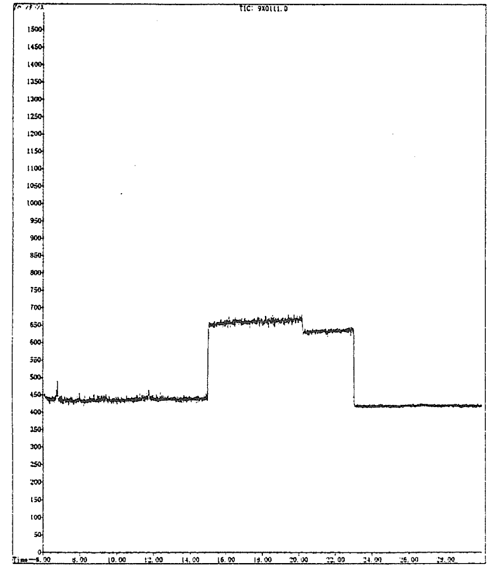

Chromatogram of
“Guaranteed by x 10,000 Concentrated Toluene”

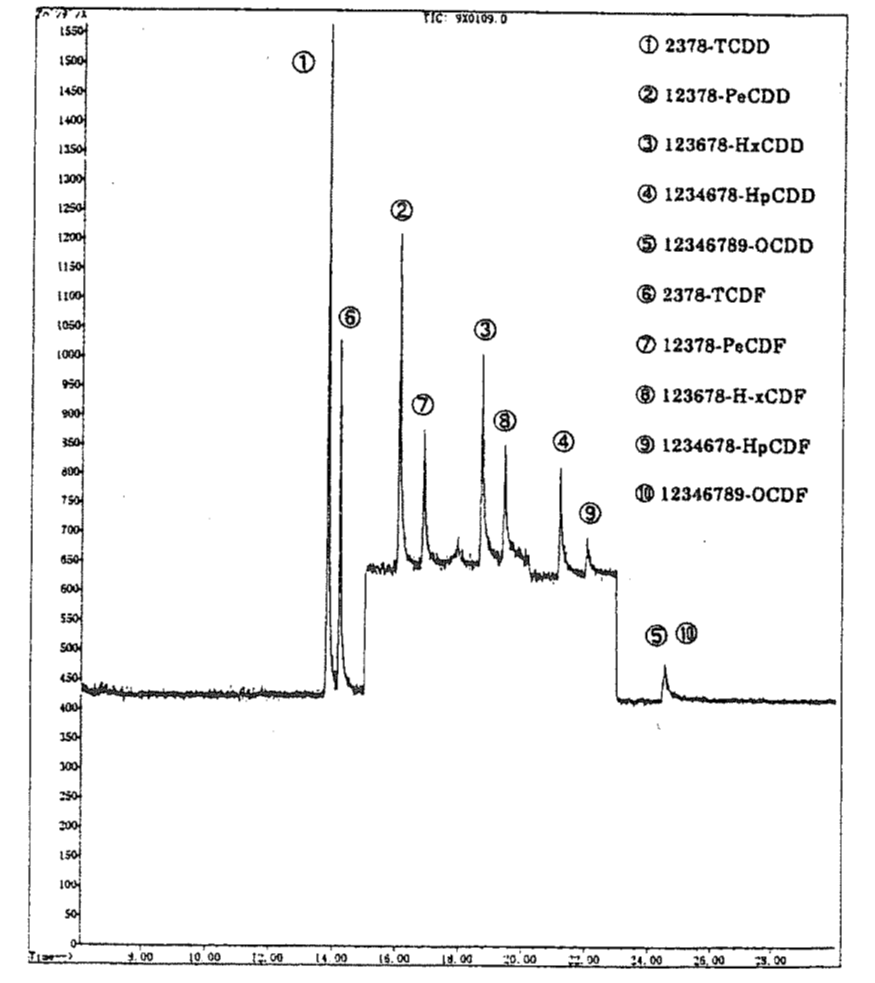

Chromatogram of dioxins mixed standard solution (each 10ppb)
Data image
Analysis condition GC/MS
  • Apparatus
  • Column
  •
  • Carrier Gas
  • Column Temp.
  •
  • Injection Volume
  • Injection Temp.
  • Detection
  • Temp. of Ion Source
  • Time of Solvent Cut
  • SIM Condition
  • HP6890/HP5972
  • HP-5MS(5%Phenylmethylsiloxane)
    Length:30m、I.D.:0.25mm、Film thickness:0.25μm
  • He 1ml/min
  • 100℃(1min) ~20℃/min~200℃(0min)~5℃/min~300℃(4min)
  • 5μl Pulsed splitless(Purge time:1.5min)
  • 300℃
  • 280℃
  • MSD(SIM)
  • 180℃
  • 6min

Time
(min)
Monitor Ion (m/z)
6.0 - 15.0 ①322.0, ①320.0, ⑥306.0, ⑥304.0, ②356.0, ②354.0, ⑦340.0 , ⑦ 342.0
15.0 - 18.0 ①322.0, ①320.0, ⑥306.0, ⑥304.0, ②356.0, ②354.0, ⑦340.0 , ⑦ 342.0, ③390.0 ,③ 392.0, ⑧374.0, ⑧376.0
18.0 - 20.2 ②356.0, ②354.0, ⑦340.0 , ⑦ 342.0, ③390.0 ,③ 392.0, ⑧374.0, ⑧376.0,④426.0, ④424.0, ⑨,408.0, ⑨410.0
20.2 - 23.0 ③390.0 ,③ 392.0, ⑧374.0, ⑧376.0,④426.0, ④424.0, ⑨,408.0, ⑨410.0
23.0 < ④426.0, ④424.0, ⑨,408.0, ⑨410.0, ⑤460.0, ⑤458.0, ⑩442.0, ⑩444.0

①TCDD, ②PeCDD, ③HxCDD, ④HpCDD, ⑤OCDD, ⑥TCDF, ⑦PeCDF, ⑧HxCDF, ⑨HpCDF, ⑩OCDF

Solvents for Analysis of Dioxins “Guaranteed by x100,000 Concentrated Solvent”

As solvents for analysis of ultratrace dioxins in water, food, and living organisms, extremely low blank values are achieved.
★Blank test of solvent “Guaranteed by x 100,000 Concentrated Solvent” is conducted by HRGC/HRMS. Blank test of each solvent “Guaranteed by x 100,000 Concentrated Solvent” by HRGC/HRMS shows that 4-8 chlorinated dibenzo-p-dioxins (PCDDs), dibenzofurans (PCDFs), and coplanar PCBs are below detection limit.
★Inspection Report issued by Chemicals Evaluation and Research Institute, Japan (CERI) is attached.
Inspection Report issued by Chemicals Evaluation and Research Institute, Japan (CERI), which carries out blank test, is attached for every product (1L×6).

Product List
Product No. Product name Grade Size
01025-97 Acetone for dioxins analysis(x100,000) 1L×6
11338-97 Dichloromethane for dioxins analysis(x100,000) 1L×6
18636-97 Hexane for dioxins analysis(x100,000) 1L×6
40500-97 Toluene for dioxins analysis(x100,000) 1L×6

Sample Clean up for Dioxin Analysis

We Kanto Chemical has developed “Active carbon-dispersed silica gel” as a chromatographic adsorbent for pretreatment of dioxin analysis. This product is perfect pretreatment filler for dioxins analysis utilizing adsorption properties of active carbon and silica. “Active carbon-dispersed silica gel” is a very useful pretreatment filler for highly accurate measurement.

Features of “Active carbon-dispersed silica gel”

Separation of Dioxins and coplanar PCBs is achieved.
Less variation between lots due to uniform particle size.
Reduction in blank values has been successfully achieved by special treatment.So prior cleaning is unnecessary.

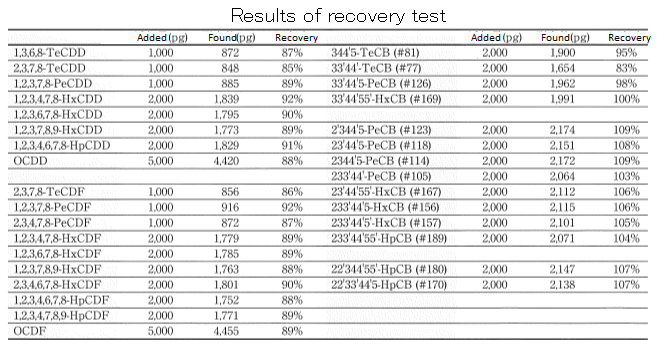

Dioxin recovery rate result of usage for “Active carbon-dispersed silica gel reversible column”

Product List

Product No. Product name Grade Size
01875-43 Active carbon-dispersed silica gel for dioxins analysis 10 g
01894-96 Active carbon-dispersed silica gel reversible column for dioxins analysis 1pack(5 pieces/pack)


PCB & Residual Pesticides

Solvents for PCB & Residual Pesticides Analysis

Rising demand of ultra trace analysis are increasing in the field of environmental, food and water quality testing, and highly qualified and purified reagents are required. Planning to highly purify products with our own equipments for distillation and purification, reagents and solvents are strictly tested by precise analysis 300 and 5000 times concentration guaranteed products are available in residual pesticides and PCB testing solvents. We provide stable quality product under the GC/MS and PCB conformity testing.

Specification

Hexane(testing after 5,000 fold concentrated)
ITEM Specification
Purity(GC) > 96.0%
Density(20℃) 0.659~0.663 g/mL
Absorbance
220 nm < 1.0
230~280 nm < 0.06
300~400 nm < 0.02
Water < 0.01%
Non-volatile matter < 0.001%
  • Suitability for GC/MS Analysis:to pass test
  • Suitability for Residual Pesticides Analysis:to pass test
    When 5μL of 5,000-fold concentrated solvent is injected into ECD GC, the height of the interfering peak on the chromatogram is less than the height of the peak indicated by γ-BHT 2×10-11g (0.02ng).
    NP-FID:Parathion, Coumaphos each 4 ng/L(before concentrated)equivalent or less
  • Suitability for PCB Analysis:to pass test

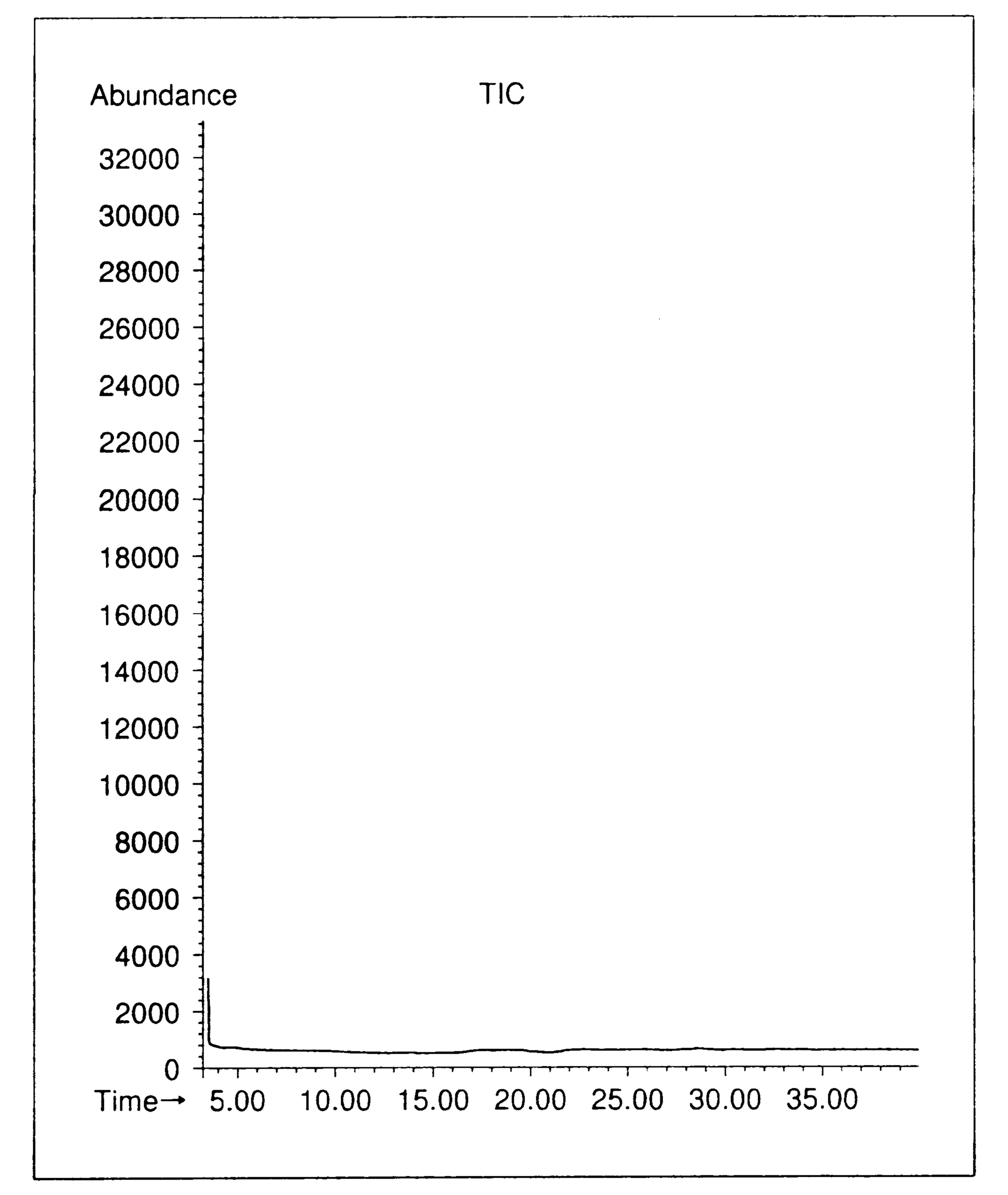

Hexane(testing after 5,000 fold concentrated)GC Blank Chart
  • Detector: Mass Selective
  • Column: Rtx-1 L 30m ID 0.25mm DF 0.25μm
  • Carrier: He 8psi
  • Oven Temp. : 70℃(1.5min)~30℃/min~140℃(0min)
  • Detector: UV254nm
  • Program: ~5℃/min~250℃(14.17min)
  • Injection: 2μl Splitless(1.5min. Purge time)
  • Injection Temp.:250℃
  • Detector Temp.:280℃

Product List

Product No. Product name Grade Size
01025-1B Acetone for pesticide residue & PCB analysis(x5,000) 1L
01025-2B Acetone for pesticide residue & PCB analysis(x5,000) 3L
12-3B Acetone for pesticide residue & PCB analysis(x300) 1L
12-4B Acetone for pesticide residue & PCB analysis(x300) 3L
01033-2B Acetonitrile for pesticide residue & PCB analysis(x5,000) 1L
01033-3B Acetonitrile for pesticide residue & PCB analysis(x5,000) 3L
17-2B Acetonitrile for pesticide residue & PCB analysis(x300) 1L
17-3B Acetonitrile for pesticide residue & PCB analysis(x300) 3L
04084-2B Benzene for pesticide residue & PCB analysis(x5,000) 1L
1792-2B Benzene for pesticide residue & PCB analysis(x300) 1L
04418-4B tert-Butyl methyl ether for pesticide residue & PCB analysis(x5,000) 1L
04418-5B tert-Butyl methyl ether for pesticide residue & PCB analysis(x300) 1L
07277-1B Chloroform for pesticide residue & PCB analysis(x5,000) 1L
07278-5B Chloroform for pesticide residue & PCB analysis(x300) 1L
07547-7B Cyclohexane for pesticide residue & PCB analysis(x5,000) 1L
07547-3B Cyclohexane for pesticide residue & PCB analysis(x300) 1L
07547-5B Cyclohexane for pesticide residue & PCB analysis(x300) 3L
10158-3B Dichloromethane for pesticide residue & PCB analysis(x5,000) 1L
10158-4B Dichloromethane for pesticide residue & PCB analysis(x5,000) 3L
6054-3B Dichloromethane for pesticide residue & PCB analysis(x300) 1L
6054-4B Dichloromethane for pesticide residue & PCB analysis(x300) 3L
14134-6B Diethyl ether for pesticide residue & PCB analysis(x5,000) 1L
14134-2B Diethyl ether for pesticide residue & PCB analysis(x300) 1L
14032-1B Ethanol (99.5) for pesticide residue & PCB analysis(x5,000) 1L
14033-4B Ethanol (99.5) for pesticide residue & PCB analysis(x300) 1L
14033-5B Ethanol (99.5) for pesticide residue & PCB analysis(x300) 3L
10972-4B Ethyl acetate for pesticide residue & PCB analysis(x5,000) 1L
10972-5B Ethyl acetate for pesticide residue & PCB analysis(x5,000) 3L
10972-2B Ethyl acetate for pesticide residue & PCB analysis(x300) 1L
10972-3B Ethyl acetate for pesticide residue & PCB analysis(x300) 3L
18041-3B Hexane for pesticide residue & PCB analysis(x5,000) 1L
18041-4B Hexane for pesticide residue & PCB analysis(x5,000) 3L
4371-3B Hexane for pesticide residue & PCB analysis(x300) 1L
4371-4B Hexane for pesticide residue & PCB analysis(x300) 3L
25183-4B Methanol for pesticide residue & PCB analysis(x5,000) 1L
25183-5B Methanol for pesticide residue & PCB analysis(x5,000) 3L
6011-2B Methanol for pesticide residue & PCB analysis(x300) 1L
6011-4B Methanol for pesticide residue & PCB analysis(x300) 3L
32065-1B Petroleum ether for pesticide residue & PCB analysis(x5,000) 1L
1772-2B Petroleum ether for pesticide residue & PCB analysis(x300) 1L
32435-3B 2-Propanol for pesticide residue & PCB analysis(x5,000) 1L
40181-1B Toluene for pesticide residue & PCB analysis(x5,000) 1L
40181-2B Toluene for pesticide residue & PCB analysis(x5,000) 3L
40180-3B Toluene for pesticide residue & PCB analysis(x300) 1L
40180-5B Toluene for pesticide residue & PCB analysis(x300) 3L

Reagents for PCB & Residual Pesticides Analysis

We provide stable quality product under the GC/MS and PCB conformity testing.

Product List

Product No. Product Name Grade Size
01031-79 Acetonitrile for thiram analysis 1L
01031-76 Acetonitrile for thiram analysis 3L
11307-5B Distilled water, washed with hexane for pesticide residue analysis 1L
11307-6B Distilled water, washed with hexane for pesticide residue analysis 3L
37144-1B Sodium chloride for pesticide residue & PCB analysis 500g
6639-1B Sodium sulfate for pesticide residue & PCB analysis 500g


Residual Solvent Analysis

Residual Solvent Analysis

In the residual solvent analysis, the amount of organic solvent present in pharmaceuticals is determined by gas chromatography and it is confirmed that the organic solvent does not exist in the drug beyond the limit value. Our residual solvent analyzing reagent reduces the content of low boiling point impurities such as methanol and guarantees the quality by suitability for residual solvent analysis.

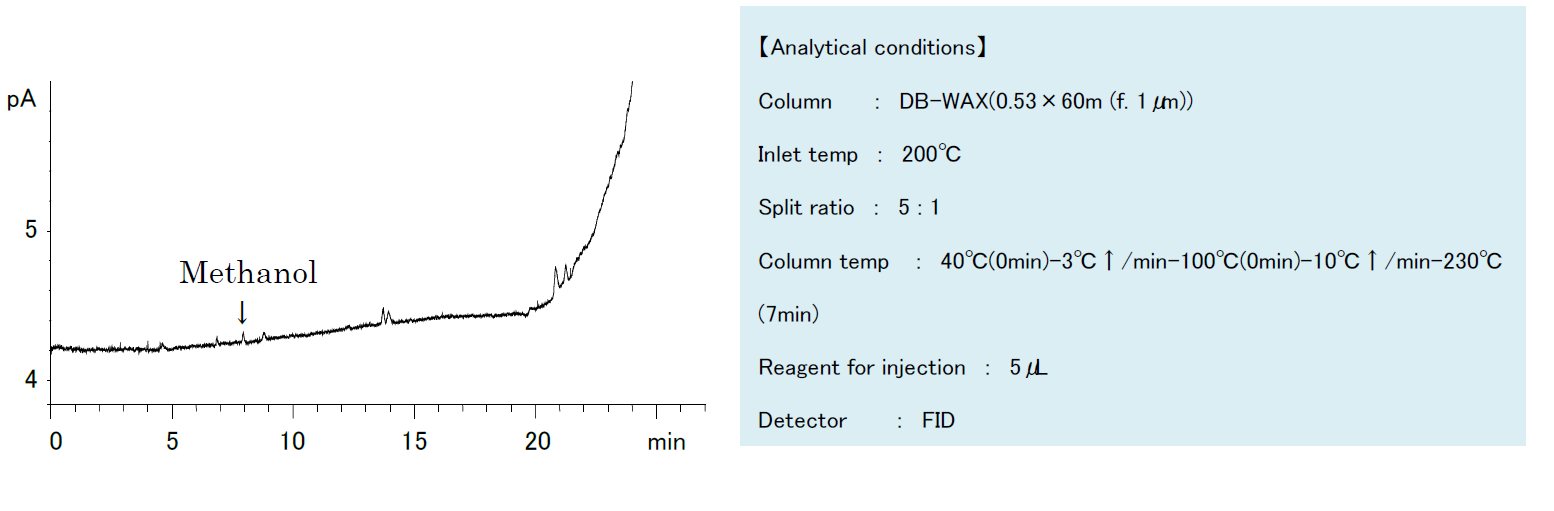

N ,N‐Dimethylformamide GC blank

Product Lineup

Product No. Product Name Grade Size
10344-07 N,N-Dimethylformamide for residual solvent analysis 500mL
10344-79 N,N-Dimethylformamide for residual solvent analysis 1L
10344-23 N,N-Dimethylformamide for residual solvent analysis 100mL
11208-07 1,3-Dimethyl-2-imidazolidinone for residual solvent analysis 500g
25336-02 N-Methyl-2-pyrrolidinone for residual solvent analysis 500mL
25336-67 N-Methyl-2-pyrrolidinone for residual solvent analysis 1L
25336-24 N-Methyl-2-pyrrolidinone for residual solvent analysis 100mL


Related Products

Product Lineup

Product No. Product Name Grade Size
14284-96 Ethanol standard stock soluton for gas chromatography 5mL×5
18614-96 Hydrogen chloride-1-butanol solution (10) for gas chromatography 1mL×5
18615-08 Hydrogen chloride-methanol solution (10) for gas chromatography 500mL
18615-33 Hydrogen chloride-methanol solution (10) for gas chromatography 25 mL
18616-96 Hydrogen chloride-methanol solution (5) for gas chromatography 1mL×5
40047-96 N-(Trimethylsilyl)imidazole for gas chromatography 1mL×5
04650-96 N,O-Bis(trimethylsilyl)acetamide (N,O=N,N) for gas chromatography 1mL×5
04906-96 Boron trifluoride methanol complex, methanol solution for gas chromatography 2mL×5
04651-96 Bis(trimethylsilyl)trifluoroacetamide for gas chromatography 1mL×5
40048-96 N-Methyl-N-(trimethylsilyl)trifluoroacetamide for gas chromatography 1mL×5
