Cica Geneus® Carbapenemase Genotype Detection KIT２
Carbapenem exhibits antibacterial activities and a very wide antibacterial spectrum.
Recently, increasing of Carbapenem Resistant Enterobacteriaceae (CRE) becomes global problem. And stealth-type CRE, which is difficult to detect by conventional drug sensitivity test, exists in Carbapenemase Producing Enterobacteriaceae (CPE).
This kit can detect 6 representative Carbapenemase genotypes and distinguish IMP-6 gene from IMP-1 group by two kinds of multiplex PCR.
This kit was collaborativery deveroped by Prof. Dr. Sugai and Assistant Prof. Dr. Kayama at Hiroshima University.
Characteristics
● This kit can detect 6 carbapenemase genotype
(IMP-1 group, VIM group, KPC group, NDM group, OXA-48 group,
GES group(carbapenemase type), and distinguish IMP-6 gene from IMP-1.)
● Required time is approximately 3 hours.
● Suitable for use in common thermal cycler.
Work Flow
| ① | Isolate carbapenemase producing bacteria |
|---|---|
| ② | DNA Extraction |
| ③ | Multiplex PCR |
| ④ | Agarose gel electrophoresis |
| ⑤ | Detection |
Target genes and its amplicon size
| Target gene | Amplicon size（bp） | |
|---|---|---|
| Reaction mixture.1 | bla IMP-1 group |
587 |
| bla VIM group |
401 | |
| bla GES(Carbapenemase) group |
228 | |
| Reaction mixture.2 | bla KPC group |
798 |
| bla NDM group |
616 | |
| bla OXA-48 group |
442 | |
| bla IMP-6 |
282 |

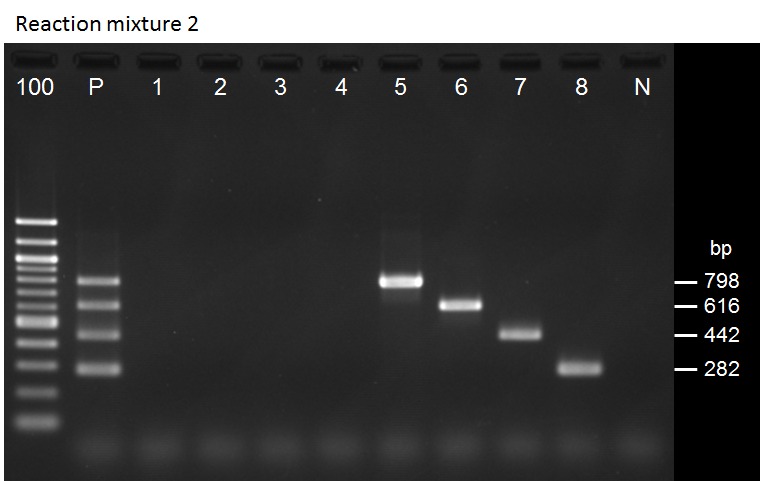

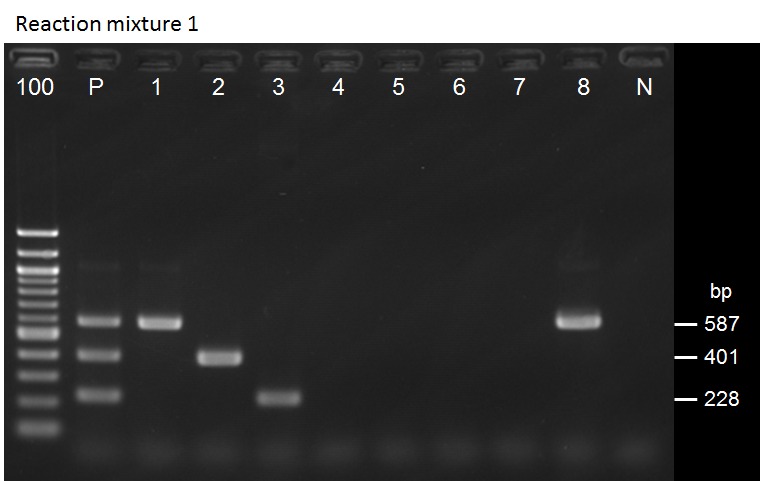

Example of the electrophoretic pattern
100：100 bp DNA Ladder, P： Positive control（ Reagent E）,
1：IMP-1 positive bacteria, 2：VIM positive bacteria,
3：GES(Carbapenemase type) positive bacteria,
4：GES(ESBL type) positive bacteria
5：KPC positive bacteria, 6：NDM positive bacteria,
7：OXA-48 positive bacteria, 8：IMP-6 positive bacteria,
N：Negative control（TE Buffer）
Brochure
Cica Geneus Carbapenemase Genotype Detection KIT２
